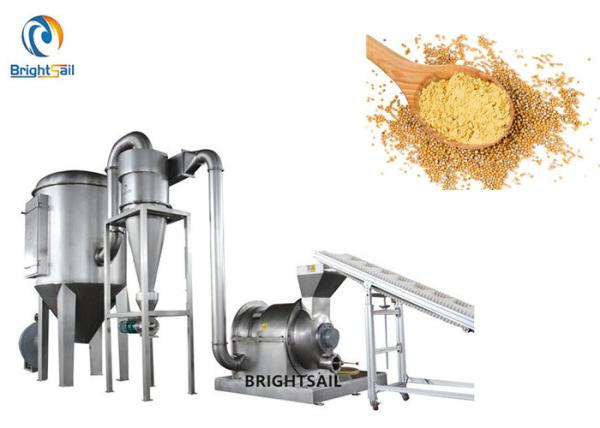

Advanced spice powder hammer mill machine coriander seeds grinding machine
BSDF advanced hammer mill is our latest advanced hammer mill set, and it is espcialy designed for grinding different kinds of spice.It combines coarse crusher,middle fine milling fine milling area(3 milling areas)together. Material will be milled three times at the same time.It is also suitable for grinding herbs, grains, cassava, fertilizer,etc.
It is one of the most popular products of our company, we have sold this kind of machine to America, Soudi Arabia, Indonesia, Thailand, Pakistan, New Zealand, Ukraine, etc.
Working method:
The material enters the crusher cavity from the feeding port, and the material passes through the high-speed rotating, coarse, medium and fine crushing knife set in turn. When passing through the coarse crushing knife group, the material is initially crushed, and then enters the middle crushing knife group, the material is further crushed, and finally passes through the fine crushing knife group to obtain the final product. A device for separating excessive coarse material particles is arranged between the medium crushing and fine crushing knife groups to control the excessive coarse particles entering the fine crushing knife groups, thereby ensuring the discharge fineness.
Main features:
1. Easy installation and maintance.
2. Without screen, the output size'll be changed by changing the speed of inverter, and it can get 10-120mesh.
3. No powder flying during production because of the dust collector. It can effectively collect the fine powder in the air current and get 100% utilization, also meet the requirements for cleanness and environmental protection in waste gas discharge.
4. Suitable for most raw material which used in different industries, such as spices,herbs,grains,etc.
5. Big raw materials can be fed into the mill chamber directly.
Packing and shipping:
About goods shipping:
We have long-term cooperation with shipping company and shipping forwarder.
We can do our best to send machine to your port safe and sound.
If your need, we can help you do custom clearance.
Packaging Details(All products will have been stickly quality checked before packing):
1. Outside package: Standard export wooden cases.
Inner package: wrapping film.
For big machine, using steel wires and nail to fix the machine inside container.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
