Commercial grains powder blender machine rice wheat flour food powder mixer

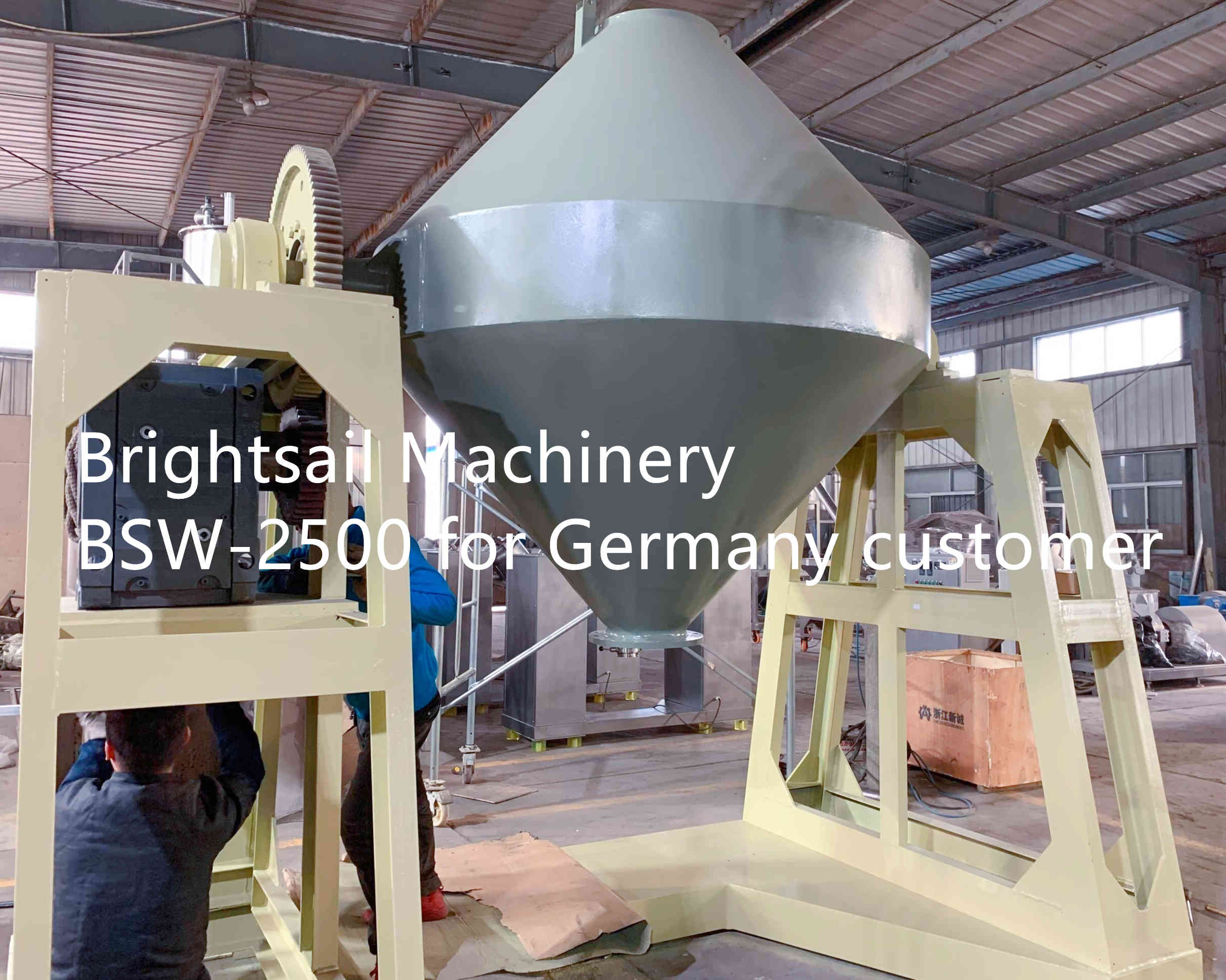

BSW double cone mixer is a machine that can uniformly mix materials (flowable powders and granules), shorten the mixing cycle, reduce energy consumption, and ensure product quality. It has played an important role in improving production efficiency and is widely used in food and chemical , Pharmaceutical, feed and other industries. In addition, the mixer body is made of stainless steel, which is well polished inside and outside, beautiful in appearance, and easy to operate.
Working method:
The machine absorb foreign products advantage to design, because two barrels length are not same will not asymmetry ; when the mixer revolution , the raw material in barrel analysis and combination with different potential energy. The raw material spread mixing alternately , with the time go on , the raw material will mixed very well.
Main features:
1. Feed powder or granules into a double cone container by vacuum drive or manually.
2. With the continuous rotation of the container, the material will produce complex impact movements in the container to achieve uniform mixing.
3. Energy saving, easy operation, low labor intensity and high work efficiency.
4. Special structure, 360 degree rotation, high degree of mixing.
5. High efficiency, ideal equipment for stirring solid powder.
6. Heat is indirect, so raw materials are not contaminated.
7. Easy to clean and maintain.
Our company:
Brightsail Machinery specializes in the production of powdery equipment suitable for food, chemical, pharmaceutical, pharmaceutical and other industries, such as pulverizers, mixers, drying ovens, sieving powder machines, feeders and packaging machines. We are one of the most influential manufacturers of powdery equipment in our industry.
Since we have sold many machines to more than 50 countries, we have enough experience and technology to help you find the most suitable machine.
If you are interested in our machines and would like more detailed information, please feel free to contact us!
Technical data:
| Model | BSW-180 | BSW-300 | BSW-500 | BSW-1000 | BSW-1500 | BSW-2000 | BSW-2500 | BSW-3000 | BSW-4000 |
| Full volume(m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Mixing speed(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
| Gross rotation height(mm) | 1850 | 1850 | 1950 | 2460 | 2540 | 3650 | 3650 | 3700 | 3730 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 2150 | 2150 | 2500 | 3200 |
