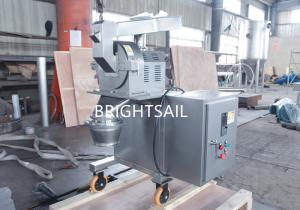

Tea Bag Making Small Dry Flower 300kg / H Fine Powder Grinding Machine

  • 1
  • 2

Brand Name : Brightsail

Model Number : BS

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 25-30 days

Packaging Details : wooden case

Product name : Tea bag making small dry flower powder tea leaf flakes crushing grinder machine

Application : food,chemical,pharmaceutical,etc

Warranty : One year

Capacity : 3-300kg/h

Fineness : 10-120 mesh

Feed size : <10 mm

Material : SS 304/316

Voltage : 220-480 v

Contact Now

Tea bag making small dry flower powder tea leaf flakes crushing grinder machine

Our BS high speed hammer grinder is a mill whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. It has numerous industrial applications, like for grinding herbs, grain, spices, dry leaves and so on. Its knife can be selected according to different materials and size of granules.

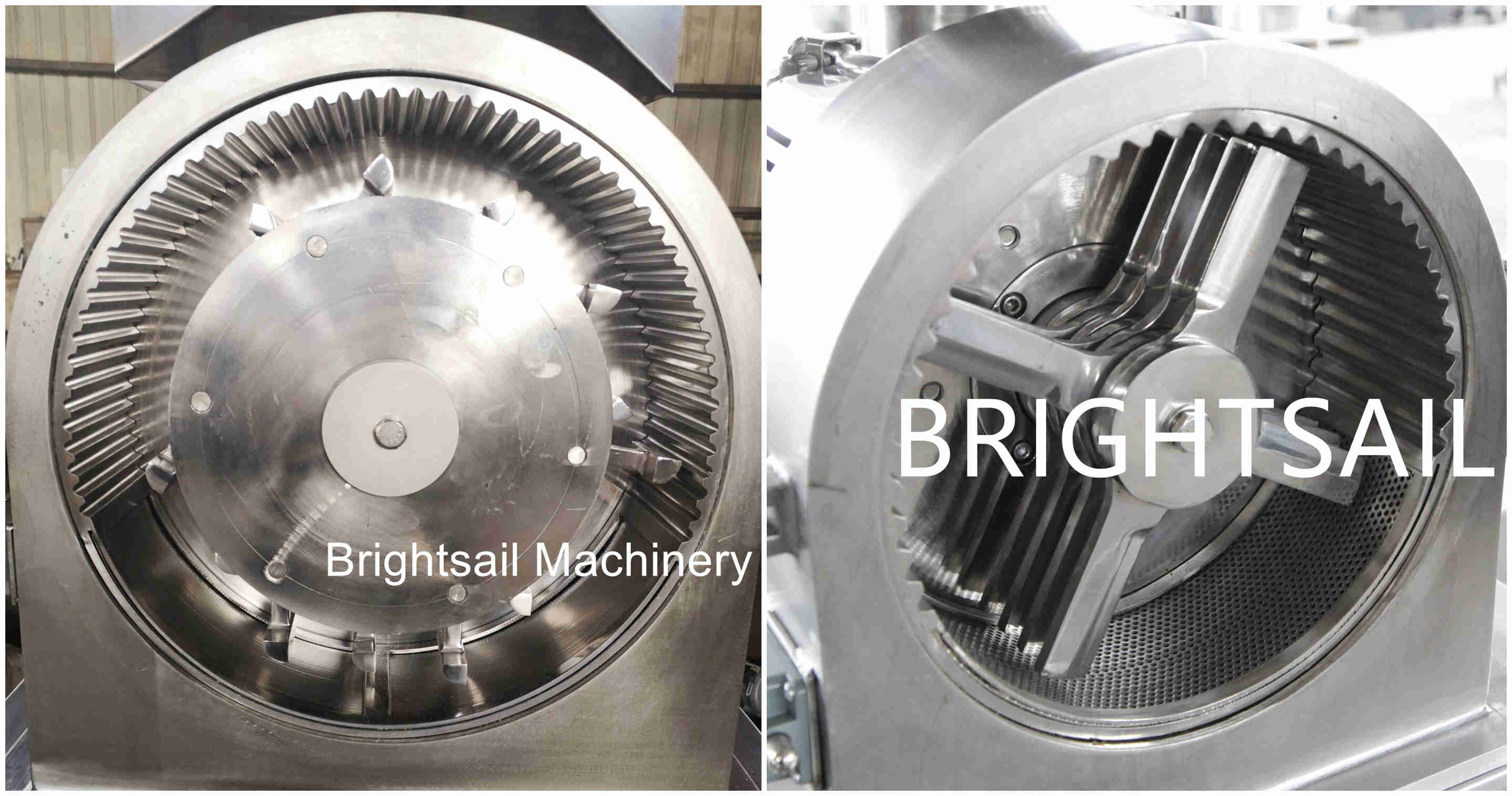

Crusher part:

Tea Bag Making Small Dry Flower 300kg / H Fine Powder Grinding Machine

Working method:

A hammer mill is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.

Main features:

1. Simple structrue.

2. High speed, which can make finer powder than common hammer grinder.

3. Stainless steel 304, which is food grade material.

Technical data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430
