1.5 - 18.5kw Motor Power 60 - 400kg Weight Peanut Butter Making Machine
Product Introduction Of Peanut Butter Making Machine:
The peanut butter making is a machine for fine processing of fluid materials. It has the effects of ultra-fine grinding, dispersion and emulsification, homogenization, and mixing. After the machine is processed, the particle size of the material can reach 2-50 microns, and the uniformity can reach more than 90%. It is an ideal equipment for ultra-fine processing.
This sesame grinder machine is suitable for ultrafine crushing of wet materials (pharmaceutical, food, chemical and other industries). It has the advantages of crushing, emulsifying, homogenizing and mixing materials.
Technical Data Of Peanut Butter Making Machine:
| Model | Motor power (kw) | Motor speed (r/min) | Processing fineness (um) | Capacity | Grinding disc diameter | Cooling water pipe | Outlet | Inlet | Weight | Boundary dimension (L*W*H) |
| (t/h) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Working Method Of Peanut Butter Making Machine:
The machine is based on different geometry of the stator and rotor relative motion in high-speed rotation. When machining materials by adjusting the stator and rotor gap under its own weight, air pressure and Centrifugal Force, it receives a powerful shearing force, friction, influence, high frequency vibration and other combined forces to effectively crush, disperse, emulsify and mix to obtain ideal product. There are three grinding areas in the crushing chamber. The first stage is the coarse grinding area, the second stage is the fine grinding area and the third stage is the ultra-fine grinding area. By adjusting the gap between the stator and Rotor, the desired ultra-micro crushing effect (can also be recovered) .
Features Of Peanut Butter Making Machine:
Sanitary food grade stainless steel. In addition to the motor part, all contact parts are made of stainless steel, especially the dynamic and static grinding plates are made of reinforced materials, which has better corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe. The colloid mill has the characteristics of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials. The motor and the base are separated in the split colloid mill, with good stability, convenient operation, long service life of the motor, avoiding material leakage and preventing the motor from burning out. Labyrinth seal, no wear, corrosion resistance, less trouble. The belt pulley is used to drive and speed up, so that the material is crushed. The vertical colloid mill solves the problem that the small colloid mill can not work continuously for a long time due to insufficient power and poor sealing. The motor is 220 V, its advantages are compact overall structure, small volume, light weight, reliable sealing structure, long continuous working time, especially suitable for small enterprises and laboratories.
Detailed Pictures Of Peanut Butter Making Machine:

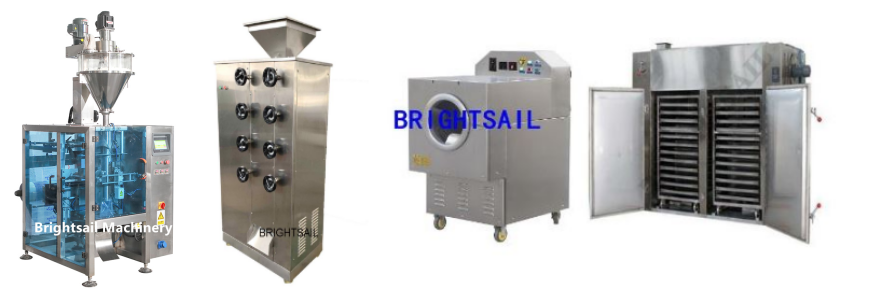

We also can provide other related machines on dealing with nuts,such as roasting machine,powder making machine,dryin machine,packing machine...
Contact us if you have any interests......
