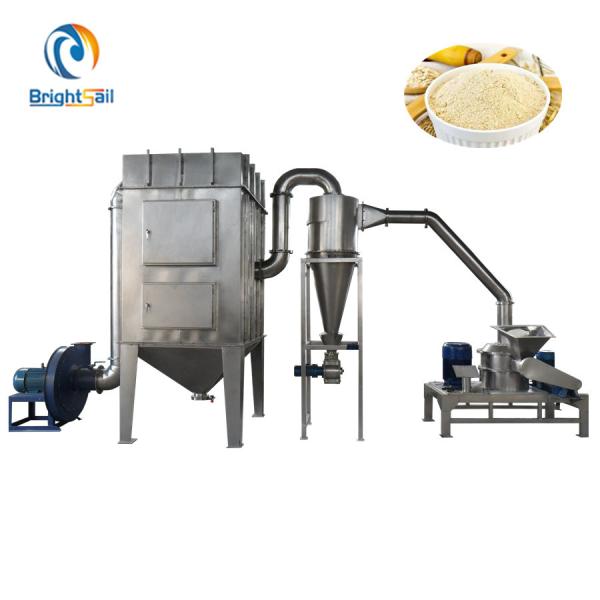

SS 304/316 1800kg/H Flour Making Machine
SS 304/316 Ethiopian Teff Flour Making Machine Flour Grind Machinery
Product Description:
BSP Teff ultrafine grinder is made up of three parts:main machine,auxiliary machine and electric control box. Teff crushing machine has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.
The production process going on continuously,the machine can undertake the grinding of chemical products.food medcine,medicament,cosmetics,plastic,dyestuff, resin,grain,etc.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Pls tell us:
About industrial food ribbon mixer conical ribbon mixer food grade ribbon mixer
1.What material do you need to mix?industrial food ribbon mixer conical ribbon mixer food grade ribbon mixer
2.What is the bulk density(g/cm³ or kg/m³) of it?
3.How many liters or kilos of material do you need to mix per batch?
4.What machine material do you want,all stainless steel 304 type or only contact part stainless steel 304,other carbon steel type?
