60 To 2500mesh Fineness 20 To 1800kg Per Hour Capacity Corn Rice Husk Hammer Mill
Introduction:corn rice husk hammer mill
BSP rice husk powder machine is suitable for crushing chemical products, food raw materials, seaweed raw materials, medicine, cosmetics, dyes, resins, fabrics and other materials, and reaches the international advanced level. It has good crushing effect on rice, sugar, salt, beans, herbs, roots, coconut shell, cassava, plantain grass, yam, etc.
Technical data:corn rice husk hammer mill
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:corn rice husk hammer mill
The material is sent to the crushing chamber by the Feeder, and is impacted, sheared and grinded by the high-speed rotating unit and the stator equipped with grinding teeth. Under the action of the impact mill classification wheel and the centrifugal force of the fan, the powder material enters the classification area, and the powder material is qualified. The excess dust continues to be crushed through the cyclone and the bag filter.
Main features:corn rice husk hammer mill
1. Alloy steel hammer blades and rotor
2. GMP and food grade design
3. Negative working condition can prevent dust and be suitable for heat sensitive material pulverization
4. Output size is adjustable via air classifier and air flow rate
5. Feeding rate is automatic controlled
6. Particle size distribution can be accurately controlled
Grinding effect:

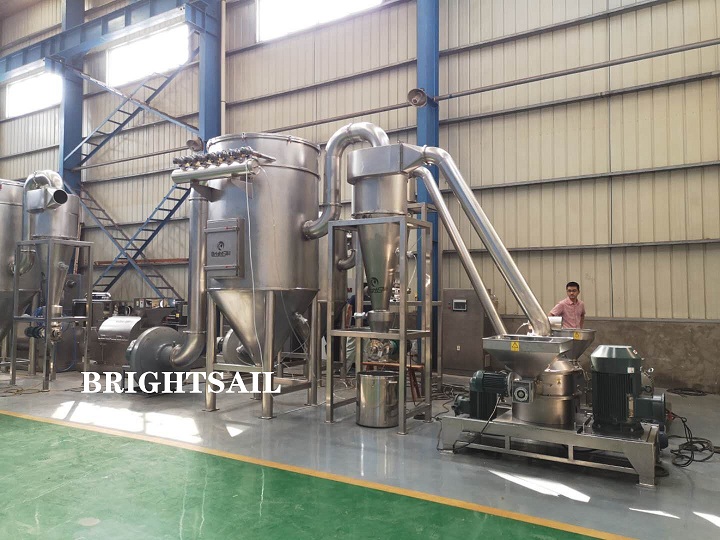

Detailed image:
