Air Classifier Mill 60-2500 Mesh Superfine Powder Grinding Equipment

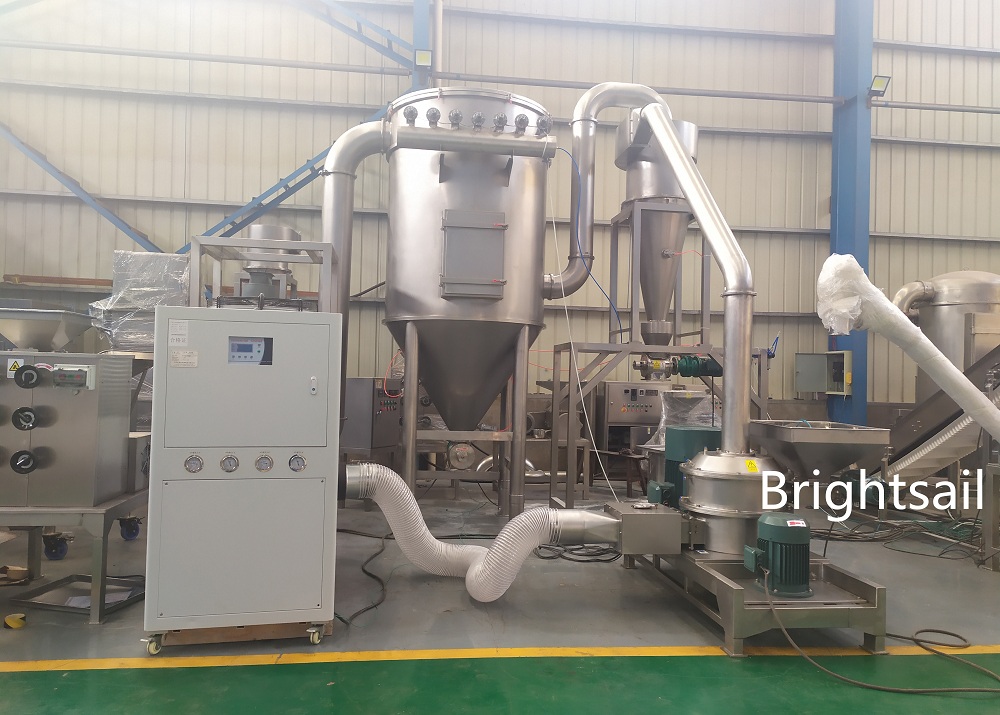

BSP grinding machine is composed of three parts: main machine, auxiliary machine and Electric Control Box. The BSP Grinder has the characteristics of wind selection, no screen and Net, and uniform particle size of processed materials. Continuous production process, can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grain and so on.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
The material is sent into the intake bypass duct by the feeding device controlled by the frequency converter, and then pneumatically conveyed to the classifier. After entering the mill, the materials are first sent to the classifier, and materials of any specification pass directly through the classifier and transport air to the product filter. The coarse material rejected by the classifier falls into the grinding zone between the rotor hammer and the surrounding grinding track. The particle size reduction occurs until the particles are fine enough to be picked up by the airflow inside the mill and presented to the classifier again. This internal recirculation is repeated until the material is fine enough to pass through the classifier and exit the air classifier. The product is separated from the conveyed air in the filter. The product is discharged through the rotary valve, and the clean air enters the system fan and atmosphere through the filter element.
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Please contact us if you have interests in our products.
