15mm Input Size Air Classifier Mill Fenugreek Seed Grinding Machine

Jiangyin Brightsail Machinery Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

15mm Input Size Air Classifier Mill Fenugreek Seed Grinding Machine

  • 1
  • 2
  • 3

Brand Name : Brightsail

Model Number : BSP

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 30-35 days

Packaging Details : Container

Product name : fenugreek seed powder grinder

Materials : herbs,grains,spice...

Voltage : customized

Input size : <15mm

Fineness : 60-2500 mesh

Other Name : fenugreek seed powder mill

Final Product : superfine powder

Contact Now

Air classifier Mill 60 To 2500mesh Fenugreek Seed Grinding Machine

BSP series superfine powder machine is one of our company's most popular products. Our customers usually use it to make powdered sugar, salt powder, flour, spice powder, medicine powder...This fenugreek seed grinder has a wide range of uses. Food, chemical, pharmaceutical and other industries need to manufacture fine powders. This grinder mill is appropriate.

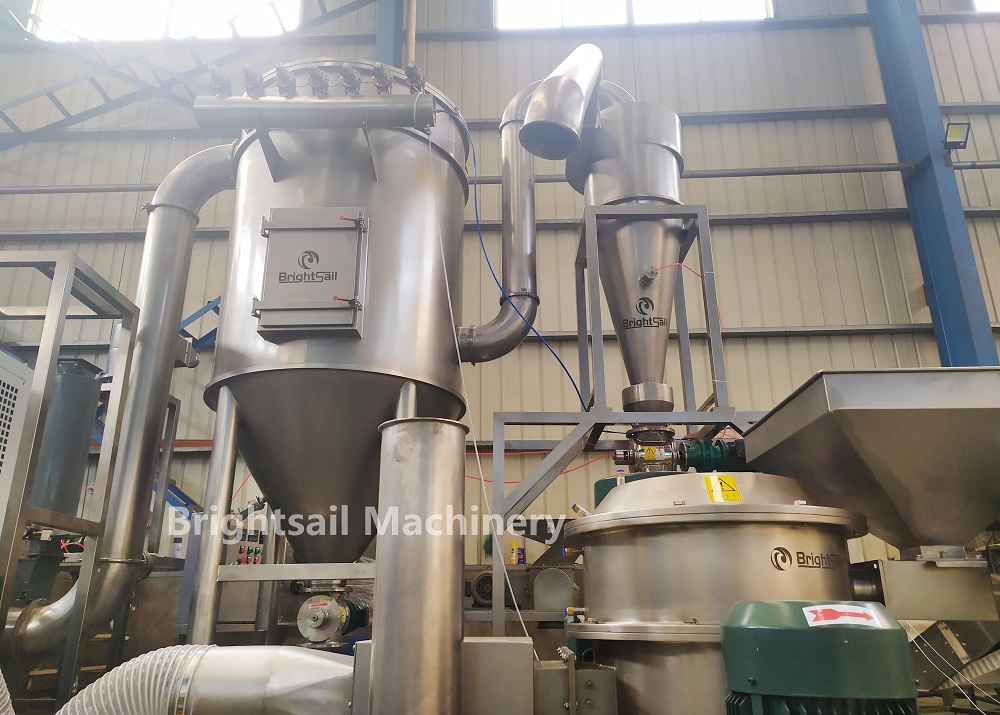

This air classifier mill is composed of three parts: Main Machine, auxiliary machine and electronic control box. A BSP grinder has the characteristics of air selection, no screen, no net and uniform particle size of processed materials. Continuous production process, can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grains, etc.

Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working Principle:

The material enters the crushing chamber from the hopper through the screw conveyor, and is sheared and crushed by the high-speed rotating blade. The material is transported into the cyclone separator and the bag filter by the method of negative pressure air transportation, and the discharged material meets the requirements of the product.

Advantages:

1. Compact design and reasonable structure. There is a grading mechanism inside the material, which can crush and grade at the same time to reduce energy consumption.

2. It is equipped with a fan for continuous heat dissipation, which is suitable for the grinding of heat sensitive materials.

3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.

4. Adjust the speed or air volume of the classifier without shutdown to obtain products with uniform distribution and meeting the required particle size.

5. The top cover of the main engine is opened by pneumatic spring, and the structure of the main engine shall be able to open to both sides, so that there will be no obstacles when cleaning and repairing internal parts.

6. The main abrasive parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of worn parts.

7. The bearing system adopts imported high-speed precision bearings, with stable operation and low vibration and noise.

8. The pipeline adopts quick disassembly structure, which is fast and convenient for disassembly and cleaning.

9. Equipped with cyclone separator and collector, there is no flying powder in the production process. The dust removal cloth bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of waste gas emission.

10. The fine powder collected by the dust bag can be effectively recovered. So as to reduce material loss.

15mm Input Size Air Classifier Mill Fenugreek Seed Grinding Machine
